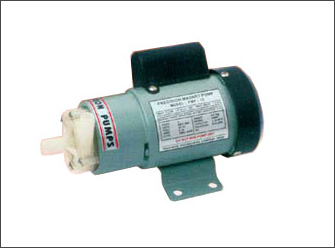

Magnetic Pump PMP 15

Centrifugal Pump

PUMP SPECIFICATIONS

Pump Model PMP-15
Connection (Suction) 14mm Hose Type
Connection (Discharge) 14mm Connection
Max. Flow (Ltrs/Min) 15
Max. Head (Meter) 2.5
Std. Duty Point Q/H 8 LPM/ 2 Mtrs
Sp. Gr. Limit 1.0
Motor/Kw 34 Watt
Phase 1 ϕ
  • The Specific gravity limit indicated above is the value at the max. Shaft power level and the liquid viscosity of 1mPa*s (1cp).
  • Liquid temperature range: 0 to 120 C.
  • Slurry: inquire to your nearest precision representative or dealer.
  • Flange type is available on request.
  • All pump models are available in flame proof motor also.
  • Chemical Resistance

    Pumps are built using high chemical and mechanical resistance thermoplastic materials GFRPP or PVDF suitable for temperatures between 0°C to 120°C depending on the materials. Non- plastic parts in contact with the pumped fluid are made utilizing excellent corrosion resistance materials such as 99.7% highly purity Alumina ceramics and GFRPTFE.

    Working Principle

    A group of drive magnets turns jointly with the electric motor shaft generating a magnetic torque that allows the second magnet group on which is moulded the impeller. These pumps do not have conventional mechanical shaft seals as pump chamber is shielded by casing and impeller is operated by magnets. This magnetic drive pump range due to absence of shaft seal can be installed in all plants and machines where leakage problems must be avoided.

    Type

    Centrifugal, single stage, with opened, semi closed or closed impellers. These pumps can be dismantled and assembled without any special tools and pump parts can be easily replaced bringing down the maintenance cost.

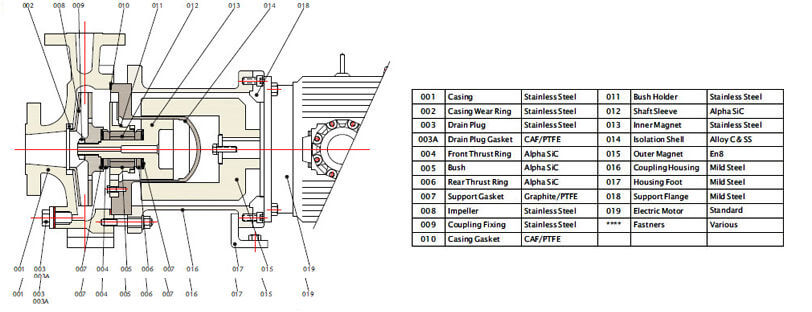

    Construction

    PUMPS PARTS GF VF
    Volute Casing GFR-PP PVDF
    Impeller GFR-PP PVDF
    Rear Casing GFR-PP PVDF
    'O' Ring FKM FKM
    Shaft AI2O399, 7% AI2O399, 7%
    Guide Bushing GFR-PTFE CFR-PTFE
    Mouth Ring GFR-PTFE CFR-PTFE
    Front Thrust Washer AI2O399, 7% AI2O399, 7%
    Bust-Thrust Bearing AI2O399, 7% AI2O399, 7%

    Material Label In This Catalog

    MATERIAL LABEL IN THIS CATALOG
    GFR-PP Glass fibre reinforced Polypropylene
    PVDF Polyvinilidenefluoride
    GFR-PTFE Glass fibre reinforced Polytetrafluoroethylene
    CFF-PTFE Carbon fibre filled Polytetrafluoroethylene
    A12O399,7% Alumina Ceramic at 99, 7% (high purity)
    FKM Fluorinated elastomer (p.e.: VITON)
    EPDM Ethylene - Propylene rubber
    FEP Flurinated, Ethylene - Propylene copolymer
