Vertical Pump

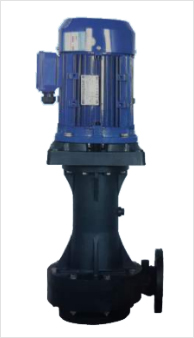

TP 1/2-2HP

Drive

Single/Three-phase motor, 0.37KW to 1.5KW


Accessories

Suction basket PP or PVC outlet connection


Features & Benefits

  • Dry-running without damage.
  • Molded parts are out of FRPP, CFRPP, and PVDF applicable for various chemicals.
  • The light form and mounting plate structure is suitable for in tank applications. Easy to mount & maintain.
  • Vapor seal stops corrosive vapor to reach the motor bearing perfectly.
  • Closed Impeller, fastened independent of rotational direction.
  • Shaft separated from the fluid by a thick - walled thermoplastic protection tube.
  • Radial and axial forces are absorbed by reinforce motor bearings.
  • Corrosion protection bay a 2C protection paint coat.
  • Centrifugal Pump

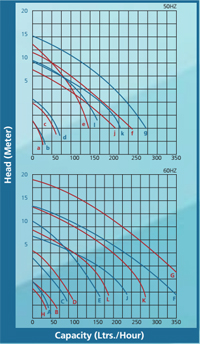

    Centrifugal Pump

    Type Graivty In-Outlet
    (mm)
    Power 50Hz 60Hz Weight(kg)
    Phase HP Pole Curve Max Head Max Flow Curve Max Head Max-flow
    PVP 10 1.1 20x20 1 ∅ / 3 ∅ 1/4 2 a 5 90 A 6 110 8
    PVP 20 1.1 40x25 1 ∅ / 3 ∅ 1/2 2 e 13 160 E 13 165 18
    PVP 30 1.1 50x40 1 ∅ / 3 ∅ 1 2 f 12 280 F 15 350 19
    PVP 40 1.1 50x40 3 ∅ 2 2 g 14 320 G 19 400 24
    PVP 50 1.1 20x20 1 ∅ / 3 ∅ 1/3 2 b 6 105 B 7 130 8.5
    PVP 60 1.1 25x25 1 ∅ / 3 ∅ 1/2 2 c 7 135 C 8 150 9.5

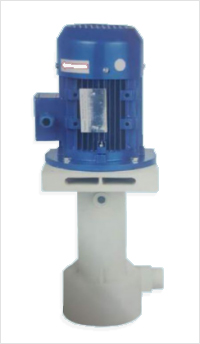

    CS 1/4-1/2HP

    Drive

    Single/Three-phase motor,O.18KW to 0.37KW


    Accessories

    Suction basket

    PP or PVC outlet connection

    Metal or plastic motor casing


    Centrifugal Pump
    Centrifugal Pump

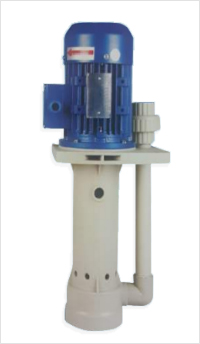

    HT 1-15HP

    Drive

    Three-phase motor,0.75KW to 11KW


    Accessories

    PVC flange

    2 grade energy efficiency motor.


    Centrifugal Pump
    Centrifugal Pump
